13.1.0 CLAMP 212 PDF download [pdf ]

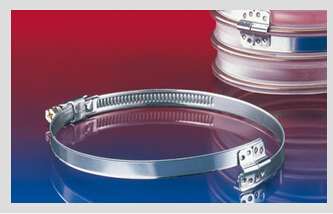

搭桥式卡箍，用于连接波纹管
|
CLAMP 212 搭桥式卡箍，用于连接波纹管 |
|
|
|
||
| 特性 | 结构 | 适合的软管内径 |
| ■ 通过特殊的搭桥结构的紧固， | 品质: W2; 卡箍带: 不锈钢 1.4301 = AISI 304; 螺丝: 镀锌 | ■ AIRDUC®: 341 + 345 + 363; 350 (AS/ FOOD-AS / |
| 有效防止渗漏 | 钢; 螺帽: 不锈钢 1.4016 = AISI 430; 桥架: 不锈钢 1.4301 | AS BLACK); 351 + 355 (FOOD / INOX FOOD- |
| ■ 快速简易的安装 | = AISI 304 (INOX) | AS / HT-PUR); 351 + 355 EC; 352 (SE |
| ■ 可反复使用 | RAILWAY / SE RAILWAY PLUS); 355 AS; 362 | |
| ■ 符合 RoHS 规定 | 定制化交货 | (FOOD / EC); |
| ■ 可提供其它长度及直径产品 | PROTAPE®: 330 (FOOD / BLACK / INOX FOOD | |
| -AS); 301 AS; 310 + 320 + 321 + 326 + 327 + | ||
| 332; 322 EC; | ||
| CP: 450 + 455 + 457 + 460 + 461 + 465 + 466 + | ||
| 467 + 476 + 480 + 481 + 483 + 485 + 486 + 487; | ||
| 450 + 461 PROTECT; 457 + 459 + 465 EC; 471 | ||
| + 472 + 475 (INOX / INOX EC); | ||
| TIMBERDUC®: 531 - 533 AS |
|
适合的软管内径
|
紧固范围
|
带宽度
|
订购代码
|
|
mm
|
mm
|
||
|
AIRDUC®,PROTAPE® ≤ 44 mm
|
|||
|
13-16
|
9-19
|
5
|
212-0009-0000
|
|
15-18
|
13-20
|
5
|
212-0013-0000
|
|
18-26
|
17-29
|
5
|
212-0017-0000
|
|
22-28
|
20-28
|
5
|
212-0020-0000
|
|
25-29
|
22-37
|
9
|
212-0022-0000
|
|
30-35
|
27-47
|
9
|
212-0027-0000
|
|
32-37
|
29-47
|
9
|
212-0029-0000
|
|
38-44
|
35-55
|
9
|
212-0035-0000
|
|
AIRDUC®,PROTAPE® ≥ 45 mm, CP ≥ 50 mm
|
|||
|
45-50
|
40-60
|
9
|
212-0040-0000
|
|
50-55
|
45-65
|
9
|
212-0045-0000
|
|
60-65
|
55-75
|
9
|
212-0055-0000
|
|
70-75
|
65-85
|
9
|
212-0065-0000
|
|
80-85
|
75-95
|
9
|
212-0075-0000
|
|
90-95
|
85-105
|
9
|
212-0085-0000
|
|
100-105
|
95-115
|
9
|
212-0095-0000
|
|
110-115
|
105-125
|
9
|
212-0105-0000
|
|
120-125
|
115-135
|
9
|
212-0115-0000
|
|
130-135
|
125-145
|
9
|
212-0125-0000
|
|
140-145
|
135-155
|
9
|
212-0135-0000
|
|
150-155
|
145-165
|
9
|
212-0145-0000
|
|
160-165
|
155-175
|
9
|
212-0155-0000
|
|
170-175
|
165-185
|
9
|
212-0165-0000
|
|
180-185
|
175-195
|
9
|
212-0175-0000
|
|
190-195
|
185-205
|
9
|
212-0185-0000
|
|
200-205
|
195-215
|
9
|
212-0195-0000
|
|
210-215
|
205-225
|
12
|
212-0205-0000
|
|
220-225
|
215-235
|
12
|
212-0215-0000
|
|
230-235
|
225-245
|
12
|
212-0225-0000
|
|
240-245
|
235-255
|
12
|
212-0235-0000
|
|
250-255
|
245-265
|
12
|
212-0245-0000
|
|
260-265
|
255-275
|
12
|
212-0255-0000
|
|
270-275
|
265-285
|
12
|
212-0265-0000
|
|
280-285
|
275-295
|
12
|
212-0275-0000
|
|
285-290
|
280-300
|
12
|
212-0280-0000
|
|
290-295
|
285-305
|
12
|
212-0285-0000
|
|
300-305
|
295-315
|
12
|
212-0295-0000
|
|
310-315
|
305-325
|
12
|
212-0305-0000
|
|
320-325
|
315-335
|
12
|
212-0315-0000
|
|
330-335
|
325-345
|
12
|
212-0325-0000
|
|
340-345
|
335-355
|
12
|
212-0335-0000
|
|
350-355
|
345-365
|
12
|
212-0345-0000
|
|
360-365
|
355-375
|
12
|
212-0355-0000
|
|
370-375
|
365-385
|
12
|
212-0365-0000
|
|
380-385
|
375-395
|
12
|
212-0375-0000
|
|
390-395
|
385-405
|
12
|
212-0385-0000
|
|
400-405
|
395-415
|
12
|
212-0395-0000
|
|
410-415
|
405-425
|
12
|
212-0405-0000
|
|
430-435
|
425-445
|
12
|
212-0425-0000
|
|
450-455
|
445-465
|
12
|
212-0445-0000
|
|
470-475
|
465-485
|
12
|
212-0465-0000
|
|
485-490
|
480-500
|
12
|
212-0480-0000
|
|
500-505
|
495-515
|
12
|
212-0495-0000
|
|
510-535
|
505-545
|
12
|
212-0505-0000
|
|
520-545
|
515-555
|
12
|
212-0515-0000
|
|
550-575
|
545-585
|
12
|
212-0545-0000
|
|
580-605
|
575-615
|
12
|
212-0575-0000
|
|
600-625
|
595-635
|
12
|
212-0595-0000
|
|
630-655
|
625-665
|
12
|
212-0625-0000
|
|
650-675
|
645-685
|
12
|
212-0645-0000
|
|
675-700
|
670-710
|
12
|
212-0670-0000
|
|
700-725
|
695-735
|
12
|
212-0695-0000
|
|
730-755
|
725-765
|
12
|
212-0725-0000
|
|
750-775
|
745-785
|
12
|
212-0745-0000
|
|
800-825
|
795-835
|
12
|
212-0795-0000
|
|
825-850
|
820-860
|
12
|
212-0820-0000
|
|
850-875
|
845-885
|
12
|
212-0845-0000
|
|
880-905
|
875-915
|
12
|
212-0875-0000
|
|
900-925
|
895-935
|
12
|
212-0895-0000
|
|
925-950
|
920-960
|
12
|
212-0920-0000
|
|
950-975
|
945-985
|
12
|
212-0945-0000
|
|
975-1000
|
970-1010
|
12
|
212-0970-0000
|
|
990-1015
|
985-1025
|
12
|
212-0985-0000
|
|
1050-1075
|
1045-1085
|
12
|
212-1045-0000
|
|
1080-1125
|
1075-1135
|
12
|
212-1075-0000
|
|
CP Ø 38-45 mm
|
|||
|
38-45
|
35-55
|
9
|
212-0035-2002
|
|
45-50
|
40-60
|
9
|
212-0040-2002
|
|
50-55
|
45-65
|
9
|
212-0045-2002
|
|
60-65
|
55-75
|
9
|
212-0055-2002
|
|
我们可提供其他直径产品。所有指定的数值都是近似值，数字均在20℃摄氏度下取得，会根据实际使用环境情况而变化。请参阅我们的技术附录www.norres.com.cn.、传真：021-33045252
|
|
