13.4.0 CLAMP 211 PDF download [pdf ]
T型螺栓卡箍，用于连接外壁平滑的重型软管
|

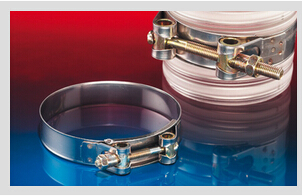

CLAMP 211 T型螺栓卡箍，用于连接外壁平滑的重型软管 |
|
|
| 特性: | 螺丝: 不锈钢 1.4301 = AISI 304 | FOOD REINFORCED); 357 PLUS; |
| ■ 快速简便的固定 | PROTAPE®: 335 | |
| ■ 可反复使用 | 交货方式: | NORPLAST®: 379 + 380 + 381 + 387 + |
| ■ 符合 RoHS 规定 | ■ 可提供其它长度及直径产品 | 389; 384 (AS / FOOD); 384 + 386 + 387 + |
| 389 C-AS; 387 + 389 PLUS; | ||
| 结构: | 适合的软管内径: | BARDUC®: 382 |
| 品质: W1; 卡箍带: 镀锌钢; 螺丝: 镀锌钢; | ■ PROTAPE®: 335 (SWEEPER /SWEEPER | NEO: 390 (ONE / TWO); |
| 品质: W2; 卡箍带: 不锈钢 1.4016 = AISI 430; | REINFORCED/ VAC-TRUCK ORANGE / | SIL: 391 (ONE / TWO) |
| 螺丝: 镀锌钢; | VAC-TRUCK REINFORCED); 356 (AS / | |
| 品质: W4; 卡箍带: 不锈钢 1.4301 = AISI 304; | FOOD / HT / INOX FOOD-AS / EC / |
|
适合的软管内径
|
带宽度
|
PU
|
订购代码
|
|
mm
|
|||
|
17-19
|
18
|
1
|
211-0021-0000
|
|
20-22
|
18
|
1
|
211-0023-0000
|
|
23-25
|
18
|
1
|
211-0025-0000
|
|
26-28
|
18
|
1
|
211-0029-0000
|
|
29-31
|
20
|
1
|
211-0031-0000
|
|
32-35
|
20
|
1
|
211-0034-0000
|
|
36-39
|
20
|
1
|
211-0040-0000
|
|
40-43
|
20
|
1
|
211-0043-0000
|
|
44-47
|
22
|
1
|
211-0047-0000
|
|
48-51
|
22
|
1
|
211-0051-0000
|
|
52-55
|
22
|
1
|
211-0055-0000
|
|
56-59
|
22
|
1
|
211-0059-0000
|
|
60-63
|
22
|
1
|
211-0063-0000
|
|
64-67
|
22
|
1
|
211-0068-0000
|
|
68-73
|
24
|
1
|
211-0073-0000
|
|
74-79
|
24
|
1
|
211-0079-0000
|
|
80-85
|
24
|
1
|
211-0085-0000
|
|
86-91
|
24
|
1
|
211-0091-0000
|
|
92-97
|
24
|
1
|
211-0097-0000
|
|
98-103
|
24
|
1
|
211-0104-0000
|
|
104-112
|
24
|
1
|
211-0112-0000
|
|
113-121
|
24
|
1
|
211-0121-0000
|
|
122-130
|
24
|
1
|
211-0130-0000
|
|
131-139
|
26
|
1
|
211-0140-0000
|
|
140-148
|
26
|
1
|
211-0150-0000
|
|
149-161
|
26
|
1
|
211-0162-0000
|
|
162-174
|
26
|
1
|
211-0174-0000
|
|
175-187
|
26
|
1
|
211-0187-0000
|
|
188-200
|
26
|
1
|
211-0200-0000
|
|
201-213
|
26
|
1
|
211-0213-0000
|
|
214-226
|
26
|
1
|
211-0226-0000
|
|
227-239
|
26
|
1
|
211-0239-0000
|
|
240-252
|
26
|
1
|
211-0252-0000
|
|
17-19
|
18
|
1
|
211-0021-9200
|
|
20-22
|
18
|
1
|
211-0023-9200
|
|
23-25
|
18
|
1
|
211-0025-9200
|
|
26-28
|
18
|
1
|
211-0029-9200
|
|
29-31
|
20
|
1
|
211-0031-9200
|
|
32-35
|
20
|
1
|
211-0034-9200
|
|
36-39
|
20
|
1
|
211-0040-9200
|
|
40-43
|
20
|
1
|
211-0043-9200
|
|
44-47
|
22
|
1
|
211-0047-9200
|
|
48-51
|
22
|
1
|
211-0051-9200
|
|
52-55
|
22
|
1
|
211-0055-9200
|
|
56-59
|
22
|
1
|
211-0059-9200
|
|
60-63
|
22
|
1
|
211-0063-9200
|
|
64-67
|
22
|
1
|
211-0068-9200
|
|
68-73
|
24
|
1
|
211-0073-9200
|
|
74-79
|
24
|
1
|
211-0079-9200
|
|
80-85
|
24
|
1
|
211-0085-9200
|
|
86-91
|
24
|
1
|
211-0091-9200
|
|
92-97
|
24
|
1
|
211-0097-9200
|
|
98-103
|
24
|
1
|
211-0104-9200
|
|
104-112
|
24
|
1
|
211-0112-9200
|
|
113-121
|
24
|
1
|
211-0121-9200
|
|
122-130
|
24
|
1
|
211-0130-9200
|
|
131-139
|
26
|
1
|
211-0140-9200
|
|
140-148
|
26
|
1
|
211-0150-9200
|
|
149-161
|
26
|
1
|
211-0162-9200
|
|
162-174
|
26
|
1
|
211-0174-9200
|
|
175-187
|
26
|
1
|
211-0187-9200
|
|
188-200
|
26
|
1
|
211-0200-9200
|
|
201-213
|
26
|
1
|
211-0213-9200
|
|
214-226
|
26
|
1
|
211-0226-9200
|
|
227-239
|
26
|
1
|
211-0239-9200
|
|
240-252
|
26
|
1
|
211-0252-9200
|
|
17-19
|
18
|
1
|
211-0021-9230
|
|
20-22
|
18
|
1
|
211-0023-9230
|
|
23-25
|
18
|
1
|
211-0025-9230
|
|
26-28
|
18
|
1
|
211-0029-9230
|
|
29-31
|
20
|
1
|
211-0031-9230
|
|
32-35
|
20
|
1
|
211-0034-9230
|
|
36-39
|
20
|
1
|
211-0040-9230
|
|
44-47
|
22
|
1
|
211-0047-9230
|
|
48-51
|
22
|
1
|
211-0051-9230
|
|
52-55
|
22
|
1
|
211-0055-9230
|
|
56-59
|
22
|
1
|
211-0059-9230
|
|
60-63
|
22
|
1
|
211-0063-9230
|
|
64-67
|
22
|
1
|
211-0068-9230
|
|
68-73
|
24
|
1
|
211-0073-9230
|
|
74-79
|
24
|
1
|
211-0079-9230
|
|
80-85
|
24
|
1
|
211-0085-9230
|
|
86-91
|
24
|
1
|
211-0091-9230
|
|
92-97
|
24
|
1
|
211-0097-9230
|
|
98-103
|
24
|
1
|
211-0104-9230
|
|
104-112
|
24
|
1
|
211-0112-9230
|
|
113-121
|
24
|
1
|
211-0121-9230
|
|
122-130
|
24
|
1
|
211-0130-9230
|
|
131-139
|
26
|
1
|
211-0140-9230
|
|
140-148
|
26
|
1
|
211-0150-9230
|
|
149-161
|
26
|
1
|
211-0162-9230
|
|
162-174
|
26
|
1
|
211-0174-9230
|
|
175-187
|
26
|
1
|
211-0187-9230
|
|
188-200
|
26
|
1
|
211-0200-9230
|
|
201-213
|
26
|
1
|
211-0213-9230
|
|
214-226
|
26
|
1
|
211-0226-9230
|
|
227-239
|
26
|
1
|
211-0239-9230
|
|
240-252
|
26
|
1
|
211-0252-9230
|
|
我们可提供其他直径产品。所有指定的数值都是近似值，数字均在20℃摄氏度下取得，会根据实际使用环境情况而变化。请参阅我们的技术附录www.norres.com.cn.、传真：021-33045252
|
|
